Afix

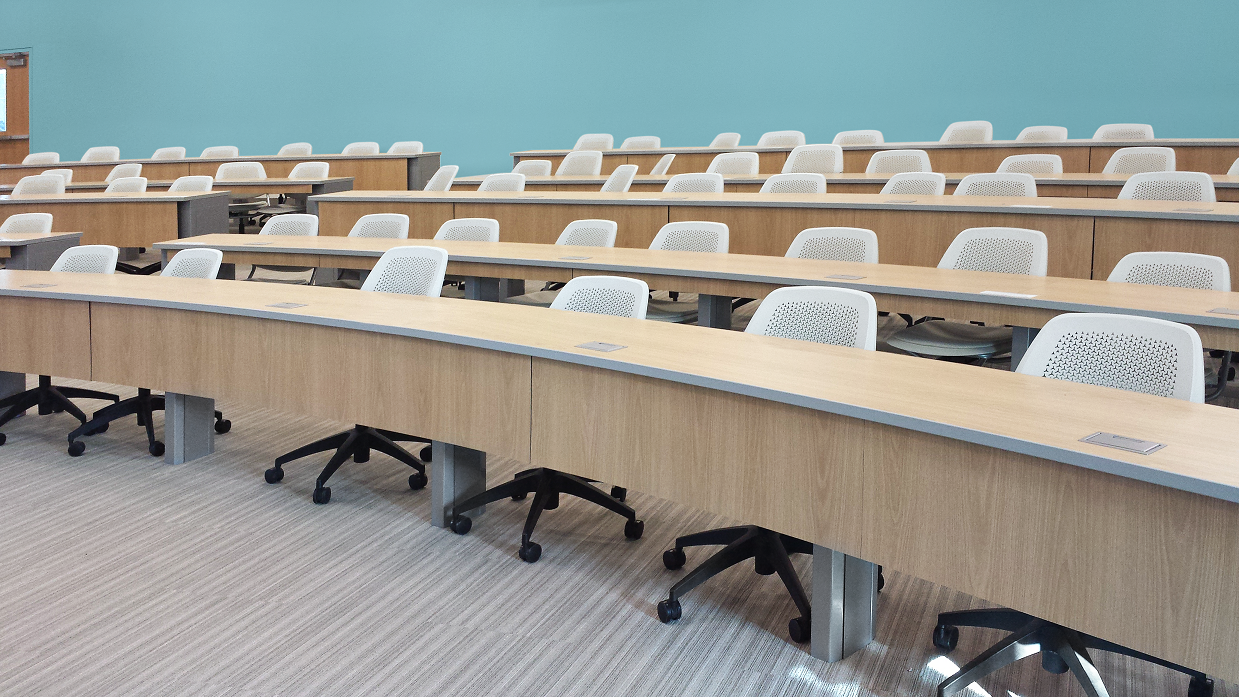

With two base options, curved and straight table top shapes, and three modesty panel selections, your choices for lecture halls are far from fixed. The Circular Base offers hardwired power and data with cord management under the work surface and down the legs. An optional form-fitted powder coated cover can match or contrast to add style to the standard plastic base. The Boat Base has a robust technology raceway inside the leg, where power and data cords can be connected to the floor monument without exiting the table base.

The aFix boat shaped base was designed with wire management in mind, features a 3.625” x 8” boat-shaped column with 3.5”wide x 2” high openings in top of column to feed wire(s) into base with a 1.875” wide x 3.875” long opening through column to feed wire(s) down to the floor.

The aFIX round b is a 3” diameter column with 1.5” round holes cut in top and bottom of column to allow wire(s) to feed in and out of column. Holes are located approximately 2.5” from top of the base and 2.5” from floor. Wire(s) can be ran directly into the bottom of base, wire bundle must fit within a 2.5” diameter area.



OPTIONAL aFIX ROUND STEEL FLOOR COVER

7.5” round X 1.375” hIgh steel bottom cover plate powder-coated Black or Silver. Cover plate is free spinning, designed to sit over standard black ABS plastic molded plate. Model Code: AXPC

AFIX Features

Straight or curved lecture hall tables

Metal or laminate modesty panels

Powered or non-Powered options

2 bases selections



Hi5 assists dealership with field measurements

Hi5 provides CAD shop drawings

Hi5 provides installation instructions & assistance


AFIX Sizes + Shapes

TOP SHAPES

STRAIGHT | CURVED

SIZES

18 | 24 | 30 |36 DEEP

ANY CUSTOM LENGTH

29 | 36 | 42 HEIGHTS



TABLE EDGES:

L3 HIGH IMPACT PVC
